Zebra ZD510 Direct Thermal Wristband Printer, Cartridge Line, 300 dpi, USB, USB Host, Ethernet, Bluetooth LE, ZPL II, XML - ZD51013-D01E00FZ

Ships from United States.

Sold and Shipped by Newegg

Purchases from these Sellers are generally covered under our Newegg Marketplace Guarantee.
Marketplace Seller
  • Direct Thermal
  • Healthcare: 2.00"/51 mm per second
  • Z-Band Fun and Z-Band Splash: 4.00"/102 mm
  • per second

LOADING... LOADING...
  • Overview
  • Specifications
  • Warranty & Returns
  • Reviews
Zebra Logo

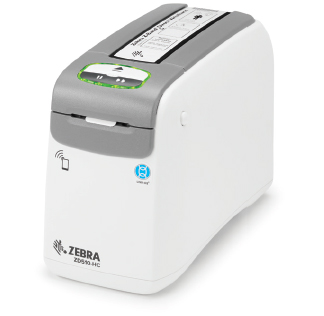

Zebra ZD510-HC Wristband Printer Angled Down to the Left

ZEBRA ZD510-HC WRISTBAND PRINTER

Specifications are provided for reference and are based on printer tests using Zebra-brand wristbands. Results may vary in actual application settings Zebra recommends always qualifying any application with thorough testing.

STANDARD FEATURES

  • Quick and easy media-cartridge loading
  • Automatic media loading - No user contact with the media during loading or removal
  • 300dpi print resolution (12 dots per mm)
  • Healthcare Power Supply
  • Link-OS
  • Real-time clock
  • Print speed (automatic selection based on installed wristbands)
    - Prints at 2 inches per second (51mm/s) with healthcare wristbands
    - Prints at 4 inches per second (102mm/s) with Fun and Splash hospitality or leisure wristbands
  • Direct thermal printing of barcodes, text, and graphics
  • Dual-wall frame, impact resistant plastic
  • ZPL or ZPL IP programming language
  • 16MB standard SDRAM memory (256MB standard SDRAM)
  • 8MB standard Flash memory (512MB standard Flash)
  • E3 Element Energy Equalizer
  • Connectivity: USB 2.0, USB Host, Bluetooth Low Energy, 10/100 Ethernet
  • Odometer for print-length tracking
  • Illuminated Media Low & Media Out indicator
  • Tool-less printhead and platen replacement
  • Unicode compliant for multi-language printing
  • XML-enabled printing - Allows XML communications from information systems
  • Instant media calibration - No wasted media
  • 16 resident expandable bitmap fonts
  • Resident scalable font
  • Head-up sensor
  • Media Low and Media Out sensors
  • Standard tear-off mode feature

OPTIONAL FEATURES

  • Factory-installed wireless - Wi-Fi certified 802.11ac and Bluetooth 4.1; MFi-certified (Apple)
  • Font Packs — Asian and other international font kits
  • ZBI 2.0 - Field installed

Learn more about the Zebra ZD51013-D01E00FZ

General

|
Brand
Zebra
Model
ZD51013-D01E00FZ

Printer

|
Print Technology
Direct Thermal
Printer Type
Desktop
Print Speed
Healthcare: 2.00"/51 mm per second
Z-Band Fun and Z-Band Splash: 4.00"/102 mm
per second
Fonts Included
Character fonts: Standard bitmapped Zebra fonts: A, B, C, D, E (OCR-B), F,
G, H (OCR-A), GS, P, Q, R, S, T, U, V & ? Smooth font (CG Triumvirate? Bold
Condensed)
Supports user-defined fonts and graphics — including custom logos
Bitmap fonts are expandable up to 10 times, height- and width-independent.
Fonts E and H (OCR-B and OCR-A), however, are not considered in spec
when expanded
Smooth-scalable font ? (CG Triumvirate Bold Condensed) is expandable dotby-dot, height-and width-independent, while maintaining edges to a max.
1500 x 1500 dots
Barcode Type
Linear Barcodes
Codabar, Code 11, Code 39, Code 93, Code 128,
EAN-8, EAN-13, EAN-14, GS1 DataBar? (formerly RSS),
Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI,
Plessey, Postnet, Standard 2-of-5, UPC-A, UPC-E,
UPC-A and UPC-E with EAN 2 or 5 digit extensions
Two Dimensional Barcodes
Aztec Code, Codablock, Code 49, Data Matrix,
MaxiCode, MicroPDF417, PDF417, QR Code

Connections

|
Interface
Ethernet / Bluetooth

Features

|
Features
Quick and easy wristband cartridge loading
Automatic print speed setting-up to 4 ips depending on installed cartridge
Direct thermal printing of barcodes, text and graphics
Dual-wall frame, impact-resistant plastic
ZPL or ZPL II programming language
512 MB Flash memory
256 MB SDRAM memory
Element Energy Equalizer (E3) for superior print quality
Connectivity: USB Host, USB, Ethernet, Bluetooth Low Energy
Odometer for print-length tracking
Illuminated media low/media out indicator
Tool-less printhead and platen replacement
Unicode-compliant for multi-language printing
Instant media calibration — no wasted media
Head-up sensor
XML-enabled printing — allows XML communications from information
systems
ENERGY STAR qualified
Link-OS
Real Time Clock

Dimensions & Weight

|
Dimensions
7.00" x 5.00" x 9.50"
